PD400 - SLIDING GLASS PATIO DOOR

Standard Features

5″ Jamb
Dual Pane – 13/16″ Overall Insulated Glass Unit
Fully Welded Frame & Sash

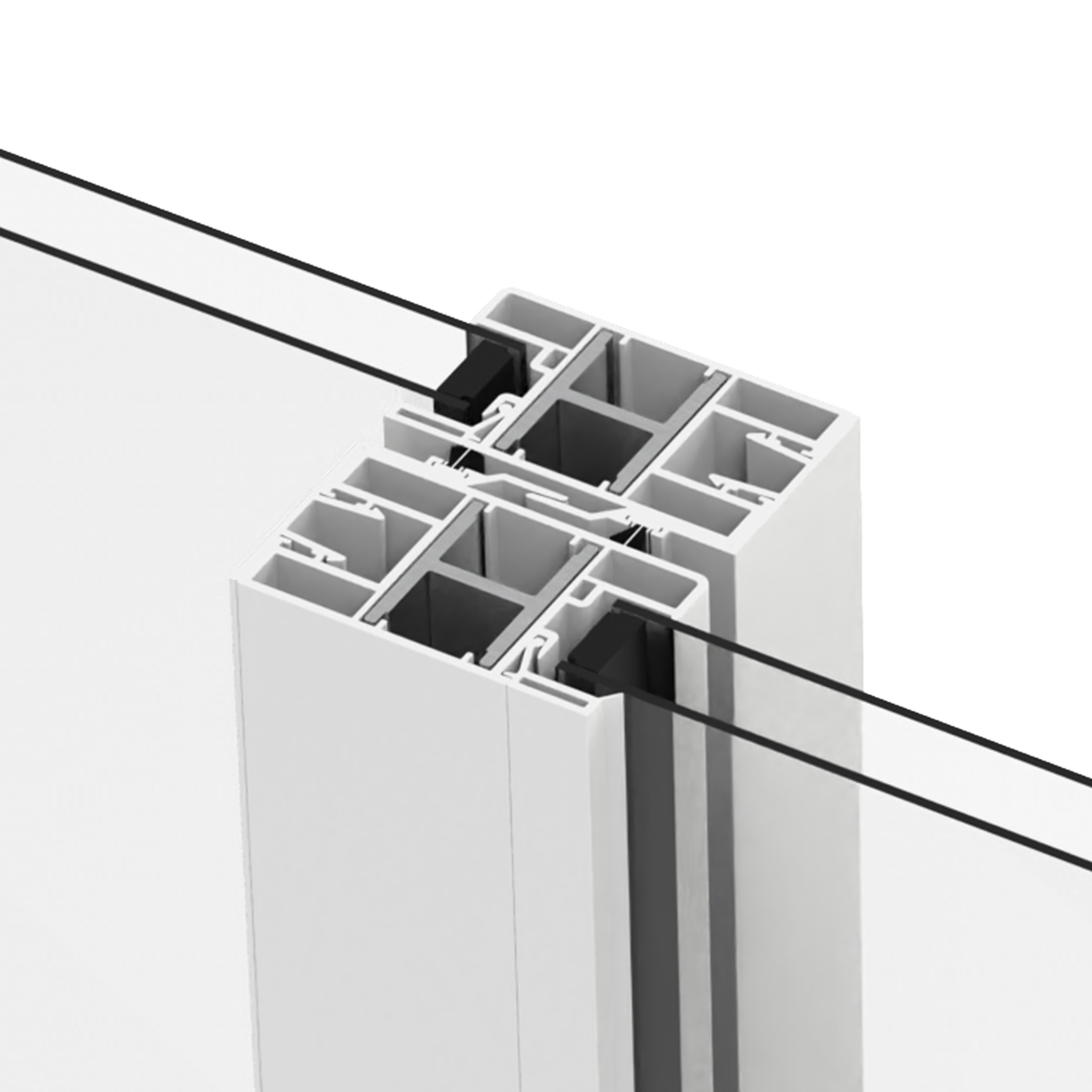

Multi-Chambered Frame & Sash For Energy Efficiency
Snap In Glazing Beads Allow For Easy Glass Repairs If Necessary
Double Sealed Weatherstripping
Surface Mount Locking Mechanism
Key Lockable Exterior Handle
Standard Footlock
Trimline Profiles For Maximum Glass Area
Rolling Screen
Self Lubricating High Performance Rollers

STANDARD SIZES
2-LITE	59.5" X 79.5"
2-LITE	71.5" X 79.5"
2-LITE - ADA	74" X 79.5"
2-LITE - ADA	74" X 95.5"
2-LITE	95.5" X 79.5"
3-LITE	107.5" X 79.5"
3-LITE	107.5" X 95.5"
3-LITE	143 1/4" X 79 1/2"
4-LITE	116 1/4" X 79 1/2"
4-LITE	140 1/4" X 79 1/2

INSTALLATION GUIDES

BROCHURE

DRAWINGS

NorthEast Windows USA is proud to offer an unmatched lifetime warranty!

All of our products are Energy Star Certified, NFRC Rated, & AAMA Gold Label Standard!

Available Options Include:

Clear Glass
Low-E Glass
Tempered Glass
Argon Gas Fill
ADA Sill

Laminated Glass
Builders Panel
Internal Blinds
Flat Grid
Contour Grid

2″ SDL Grid
Replacement
Nail Fin
Nail Fin & J
Flat Casing

Foam Wrap
Foam Filled Extrusion
Custom Sizing
Extension Jambs
Custom Stacks

NFRC & AAMA RATINGS:

AAMA RATINGS
PERFORMANCE GRADE	R - PG35
DESIGN PRESSURE	DP - 35
AIR INFILTRATION	<.07 @ 1.57 PSF
WATER RESISTANCE	5.25 PSF
UNIFORM STRUCTURAL LOAD	52.50 PSF
UNIFORM DEFLECTION LOAD	52.50 PSF
FORCED ENTRY	GRADE 10

[wptb id="7128" not found ]

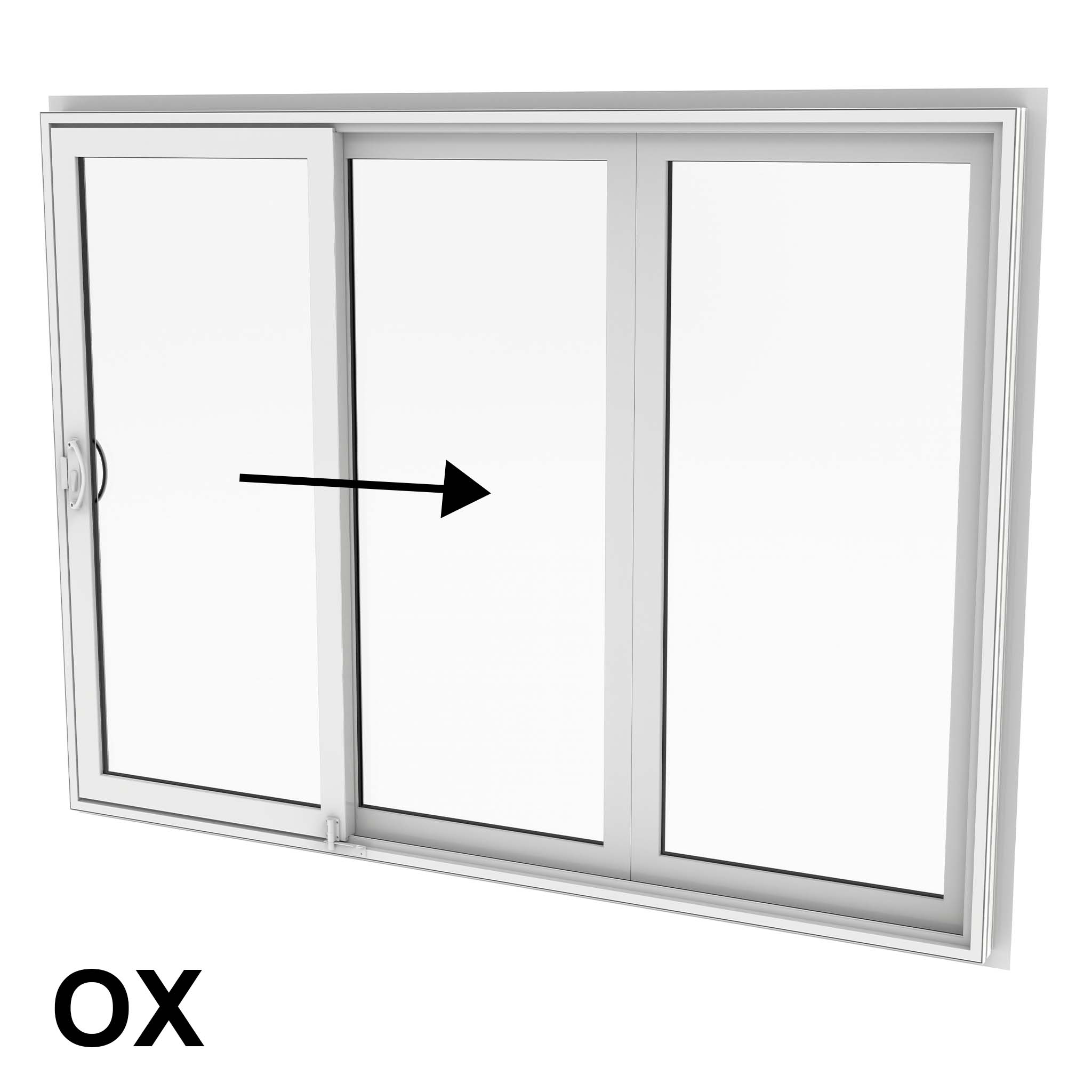

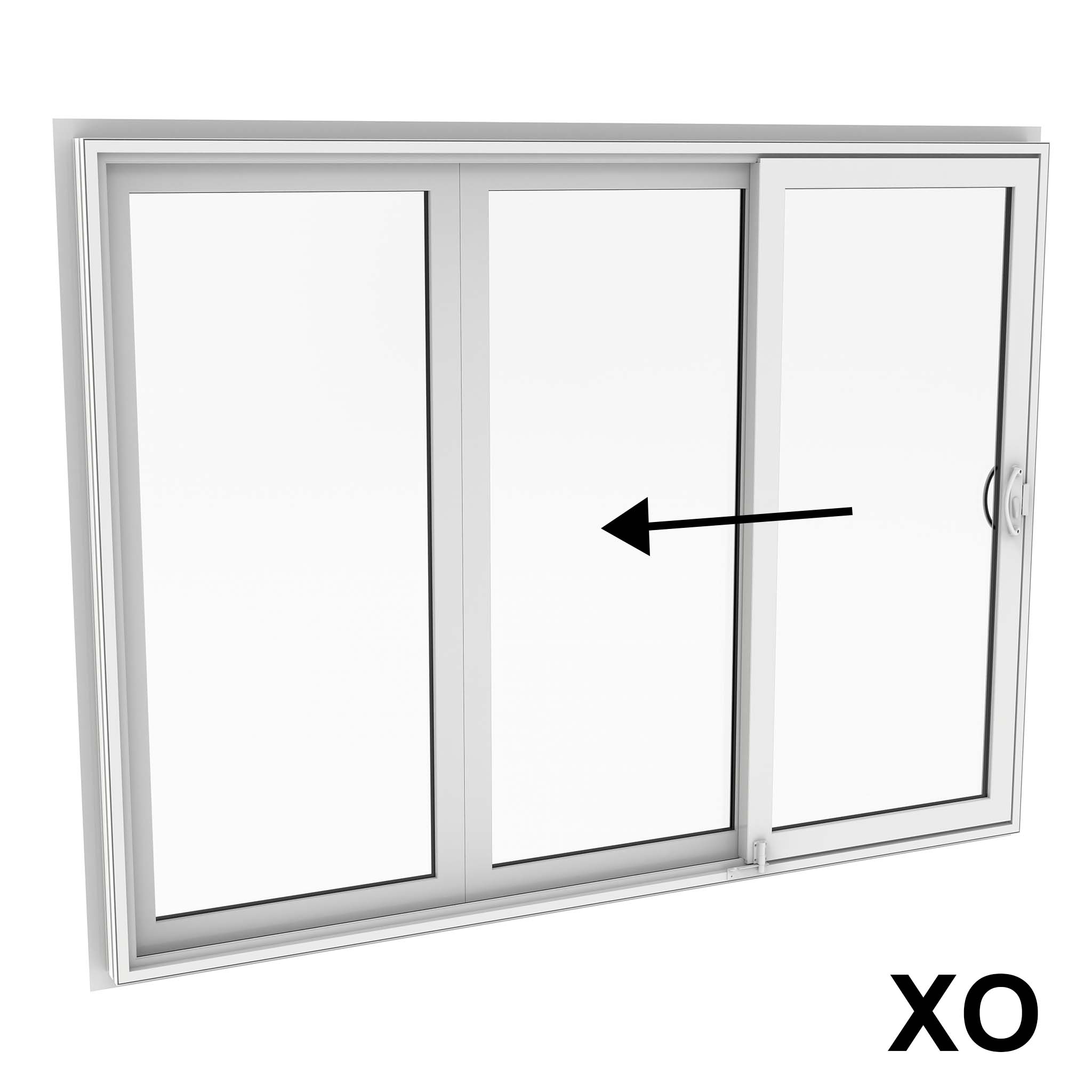

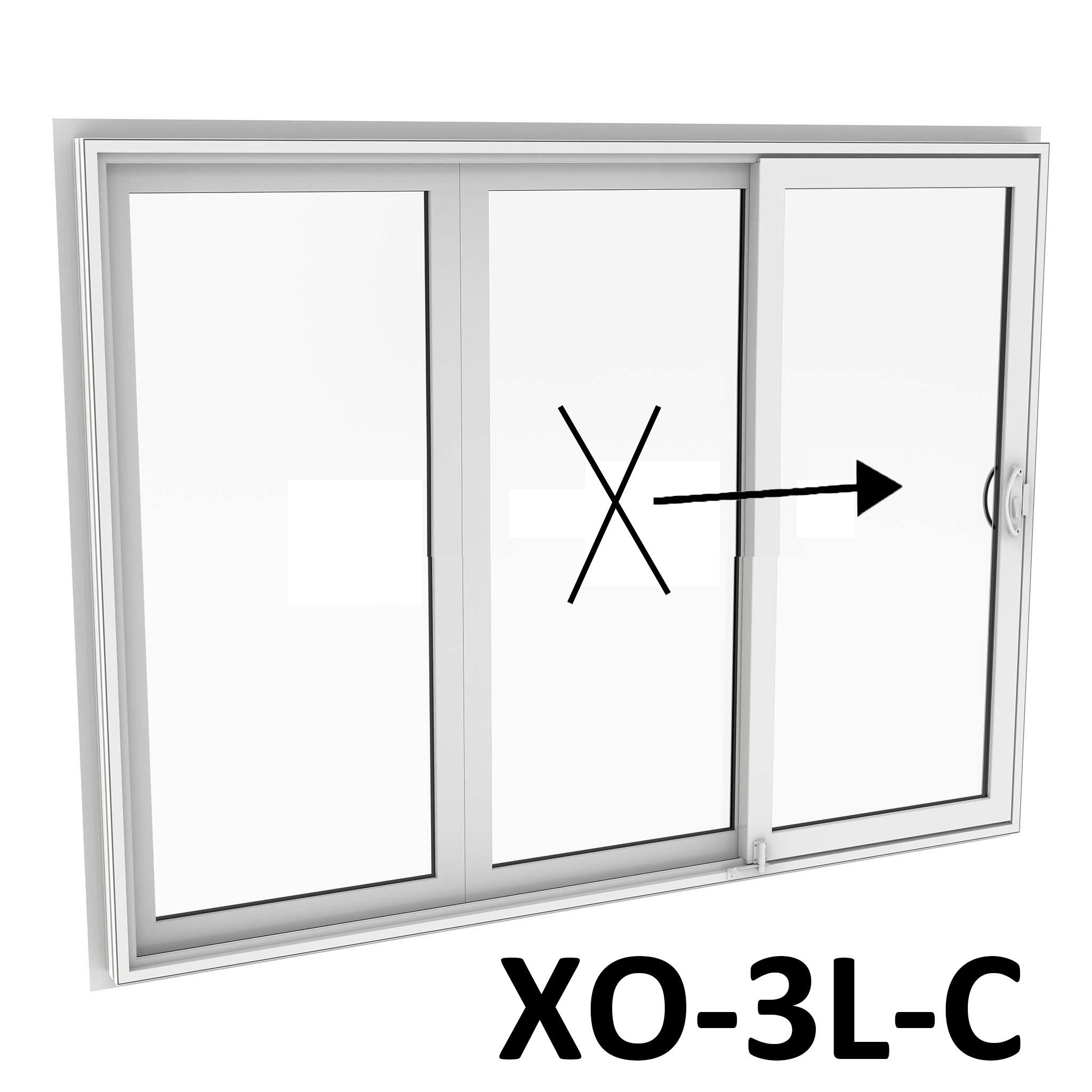

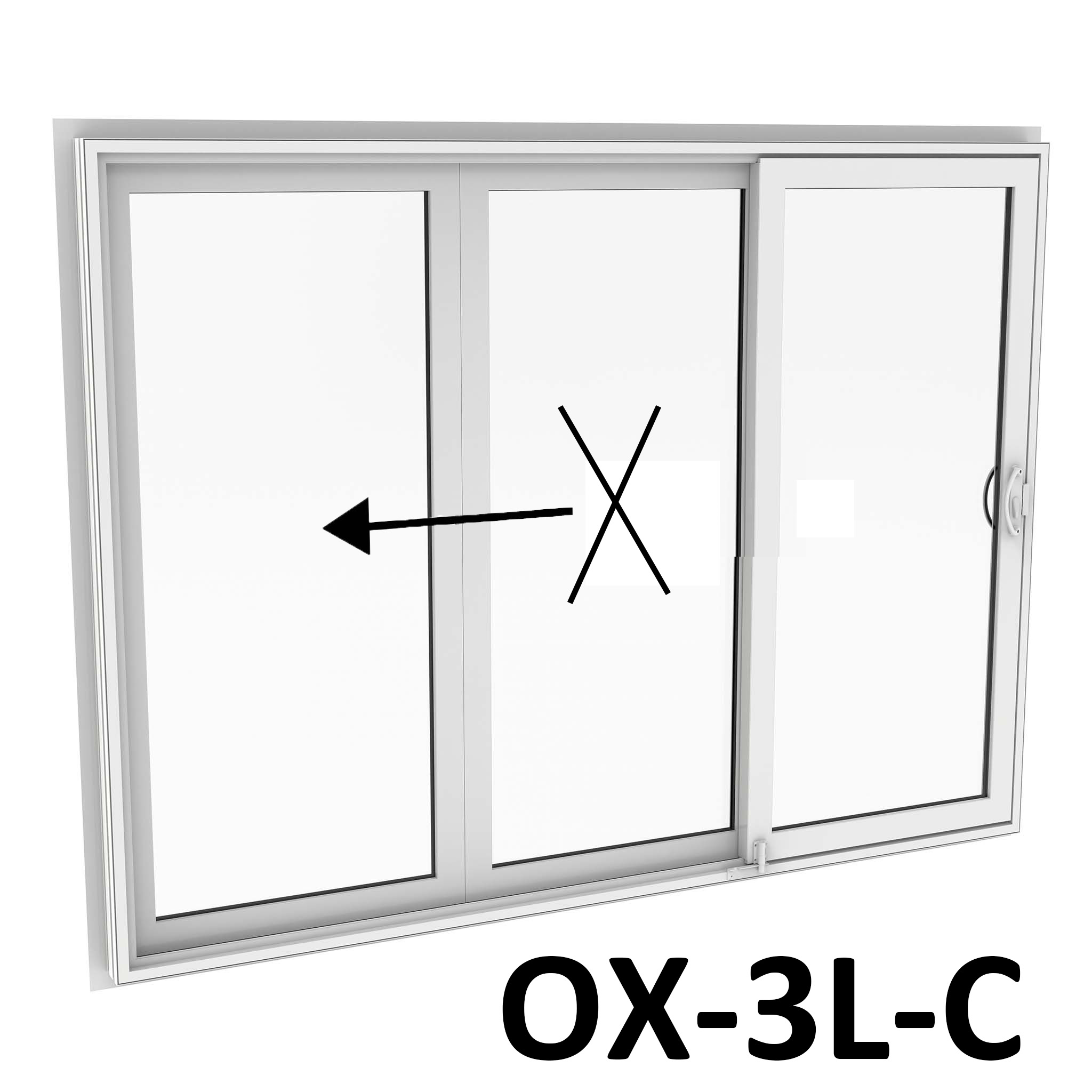

Venting:

Our Sliding Glass Patio Doors utilize high performance self lubricating rollers for ease of opening & closing. All handling is viewed from the exterior. X being the operable panel; O being the fixed panel.

XO - LH

OX - RH

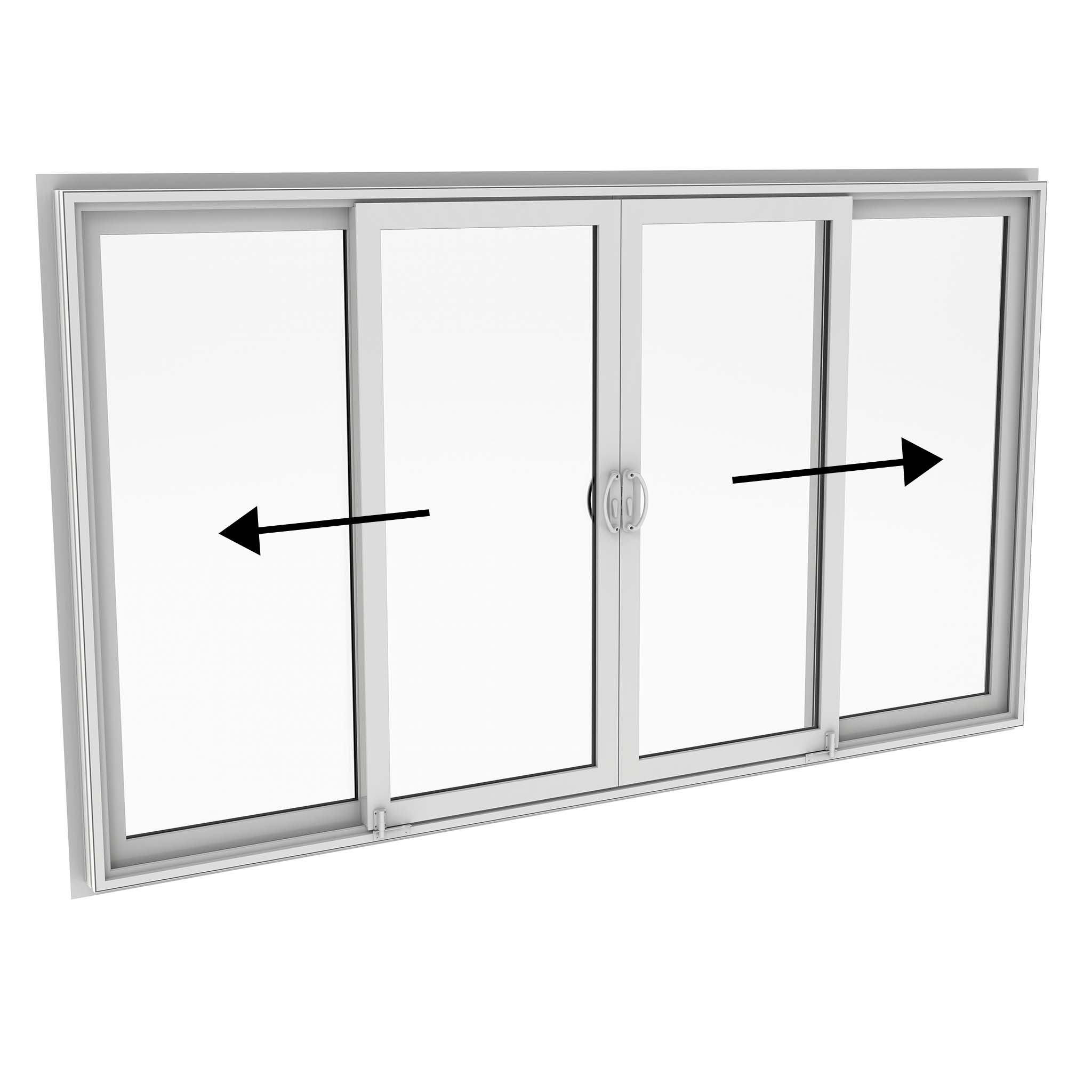

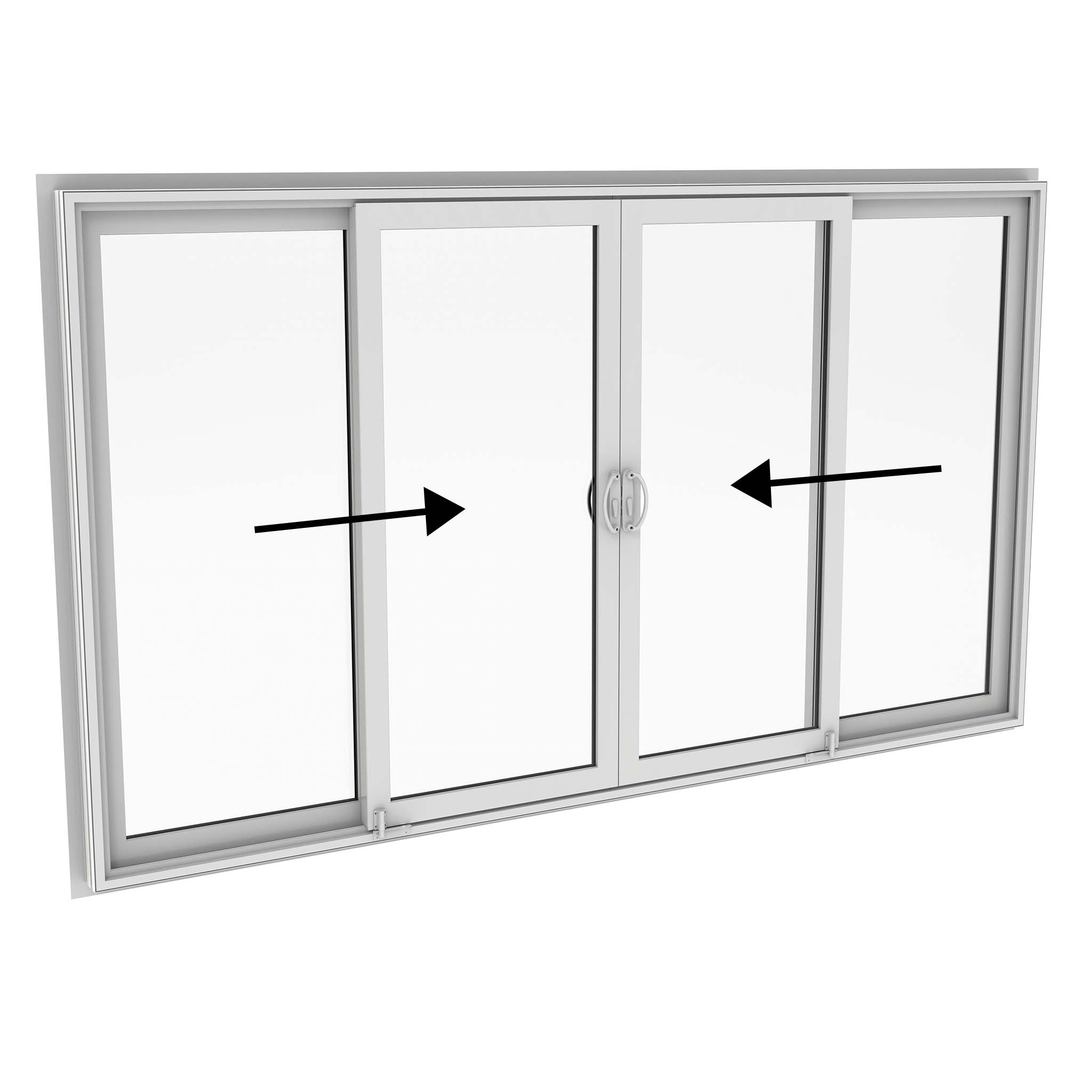

Configurations:

Our Sliding Glass Patio Door’s can be manufactured in various configurations. We are capable of manufactring 2 Panel, 3 Panel, & 4 Panel Doors. Additionally we are capable of manufacturing with Mulled Transom Units.

2 Panel

3 Panel

4 Panel

Transom

Exterior Color Options:

Northeast Windows USA offers five exterior color selections to give your house a distinct look and enhance its Curb appeal. All of our colors are fully extruded color throughout. Additionally, we are now offering a two-tone laminated window (laminated Exterior Black, Interior Cream White). Our laminated products are warrantied for 20 years against color fading.

Euro White

Blue White

Almond

Bronze

2-Tone

LAMINATED EXTERIORS

Northeast Windows USA uses the highest performing Renolit Exofol FPX Film for all of our laminated exterior applications. There is no need to worry about color fading, chipping, or scratching like a painted or co-extruded product. All of our laminated products come equipped with a 20 year warranty. For more information, feel free to visit our “Colors” page.

Black

Frame Types:

Northeast Windows USA offers various frame types depending on your building application or method of installation

Replacement

Nail Fin

Nail Fin & J

Glass Options:

Northeast Windows USA offers multiple variations of glass options dependent on your geographical location & desired appearance. All of our Sliding Glass Patio Door Glass Units are 13/16″ Overall Thick & Dual Glass Pane. We utilize a high performance Duralite Spacer System for energy efficiency. Per Building Code Requirements, All Patio Doors are manufactured by default utilizing Tempered Glass. We offer both Energy Star 6.0 & Energy Star 7.0 Configurations across all of our products!

Clear

E270 Low-E

Tempered

Laminated

Tinted

Argon

Double Low-E

ENERGY STAR 7.0

Beginning in October 2023, Energy Star Certification will be transitioning from Version 6.0 into Version 7.0. All of our products will have Energy Star 7.0 Certified configurations. In order to acchieve the required u-values, we will be utilizing a combination of both hardcoat and softcoat double low-e glass types along with foam filled extrusions.

Standard Patio Door Hardware:

The below hardware come standard factory applied on all of our awning windows.

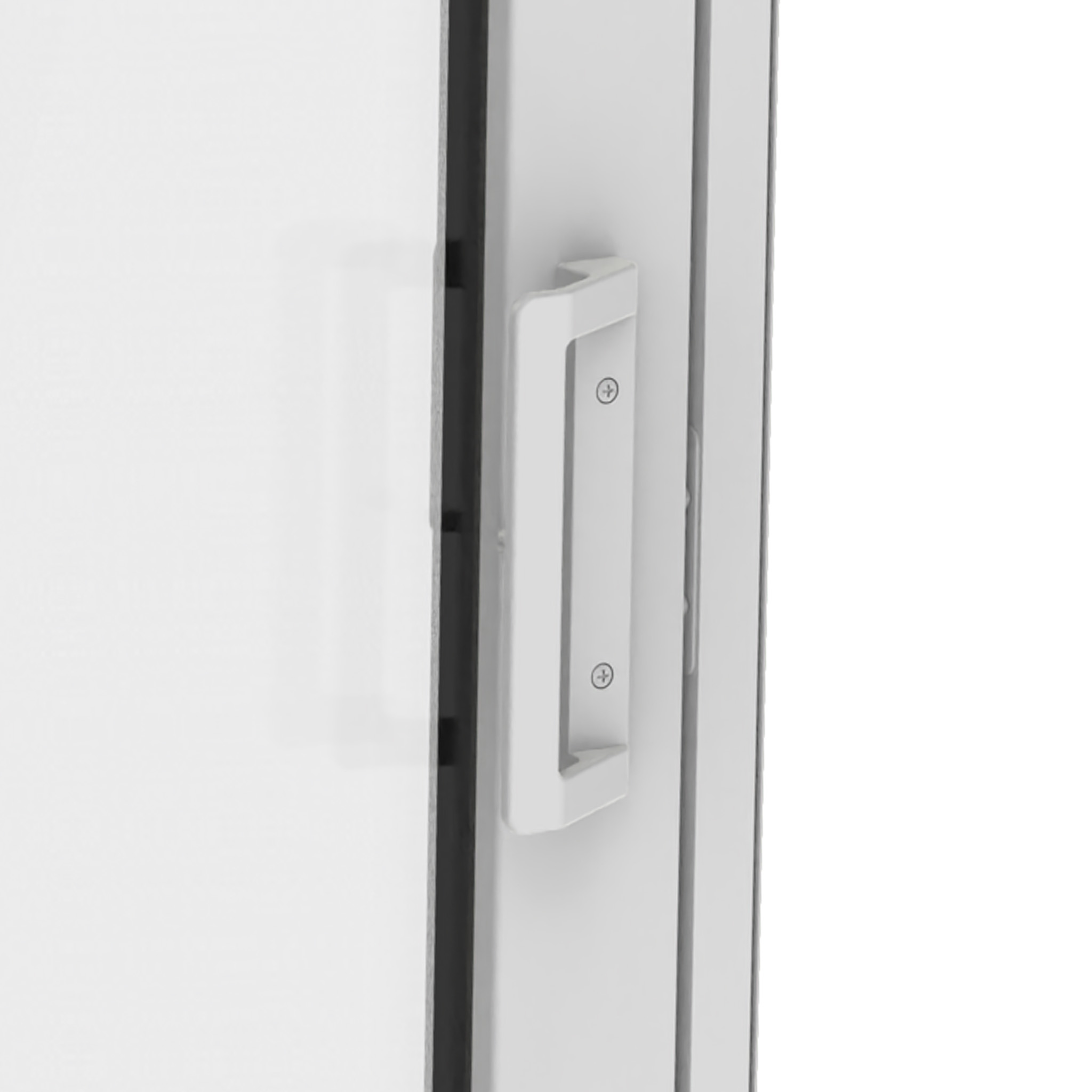

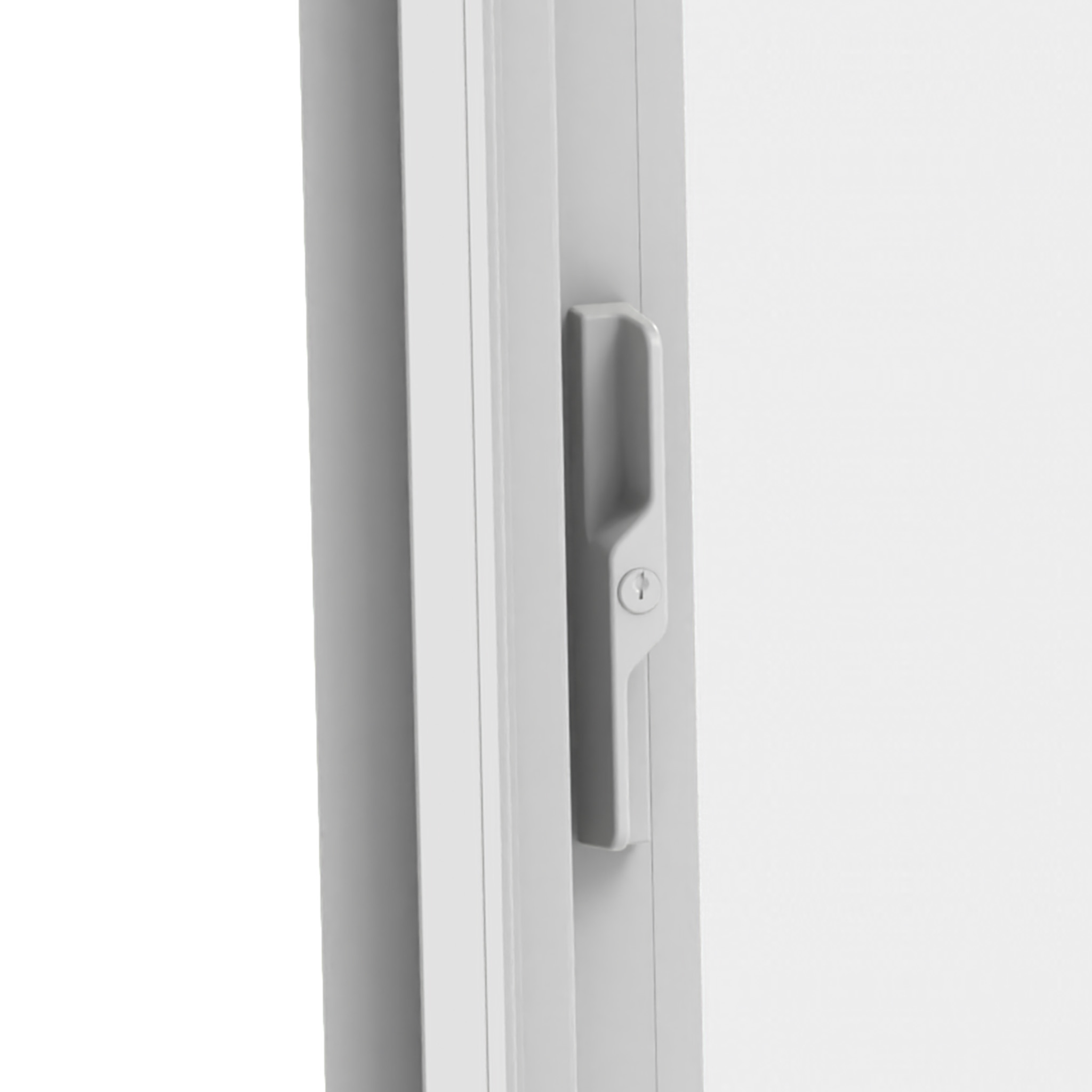

Key Locking Handle

Footlock

Anti-Slip Sill

Rolling Screen

Metal Reinforcement

Grid Profiles:

Northeast Windows USA offers various grid profiles across all of our products. All of our profiles can be utilized to create any of the combinations seen below. All of our grids are located inside of our insulated glass units. Along with an internal flat grid, Simulated Divided Lites (SDL) are added to the exterior of the glass. SDL’s are offered in both the interior & exterior on our windows.

Flat

Contour

Simulated Divided Light (SDL)*

Pencil Bars - (Colors: Gold & White)

2" SDL

Grid Patterns:

Are you looking for a stunning design detail to instantly set your home apart both inside and out? A choice of decorative grilles for your Northeast USA Windows & Doors can highlight the architectural style that speaks to you.

Colonial

Diamond

Prairie

Options:

ADA Sill

Vinyl Sill

Foam
Wrap

4 9/16" Extension Jamb

6 9/16" Extension Jamb

Drywall Returns

Foam
Filled

ADA Handle

Internal Blinds

Blink blinds are the premier choice for internal systems. They are Child & Pet friendly, as well as completely
maintenance and clean free. They also come equipped with a 10 Year Warranty.

Our internal blinds will be offered in three different styles: Tilt & Turn, Raise & Lower, or Both. They will also be offered in both tempered and annealed glass.
