PW330 - FIXED

Standard Features

3 1/4″ Jamb
Dual Pane – 7/8″ Overall Insulated Glass Unit
Fully Welded Frame & Sash
Multi-Chambered Frame
Snap In Glazing Beads Allow For Easy Glass Repairs If Necessary
Trimline Profiles For Maximum Glass Area

SIZE REFERENCES
MINIMUM LITE WIDTH	14"
MAXIMUM LITE WIDTH	96"
MINIMUM LITE HEIGHT	14"
MAXIMUM LITE HEIGHT	72"
IF U.I. > 101, THEN DOUBLE STRENGTH GLASS REQUIRED

INSTALLATION GUIDES

BROCHURE

DRAWINGS

NorthEast Windows USA is proud to offer an unmatched lifetime warranty!

All of our products are Energy Star Certified, NFRC Rated, & AAMA Gold Label Standard!

Available Options Include:

Single Strength Glass
Double Strength Glass
Clear Glass
Low-E Glass
Tempered Glass
Argon Gas Fill

Obscure Glass
Laminated Glass
Builders Panel
Internal Blinds
Flat Grid
Contour Grid

Pencil Bar Grid
2″ SDL Grid
Replacement
Nail Fin
Nail Fin & J
Flat Casing

Foam Wrap
Foam Filled Extrusion
Custom Sizing
Extension Jambs
Custom Stacks

NFRC & AAMA RATINGS:

AAMA RATINGS
PERFORMANCE GRADE	R - PG 60
DESIGN PRESSURE	DP - 60
AIR INFILTRATION	.03 @ 1.57 PSF
WATER RESISTANCE	12 PSF
UNIFORM STRUCTURAL LOAD	90 PSF
UNIFORM DEFLECTION LOAD	90 PSF
FORCED ENTRY	GRADE 10

[wptb id="7125" not found ]

Configurations:

Our Fixed windows are capable of being manufactured in custom combinations and stacks

1-Lite

Sidelite

Transom

PW Setup

Custom Stack

Mull Types:

Northeast Windows USA is capable of factory mulling all stacked units in various ways.

Zero Degree

H

Continuous Frame

Field Mull

Exterior Color Options:

Northeast Windows USA offers five exterior color selections to give your house a distinct look and enhance its Curb appeal. All of our colors are fully extruded color throughout. Additionally, we are now offering a two-tone laminated window (laminated Exterior Black, Interior Cream White). Our laminated products are warrantied for 20 years against color fading.

Euro White

Blue White

Almond

Bronze

2-Tone

LAMINATED EXTERIORS

Northeast Windows USA uses the highest performing Renolit Exofol FPX Film for all of our laminated exterior applications. There is no need to worry about color fading, chipping, or scratching like a painted or co-extruded product. All of our laminated products come equipped with a 20 year warranty. For more information, feel free to visit our “Colors” page.

Black

Frame Types:

Northeast Windows USA offers various frame types depending on your building application or method of installation

Replacement

Nail Fin

Nail Fin & J

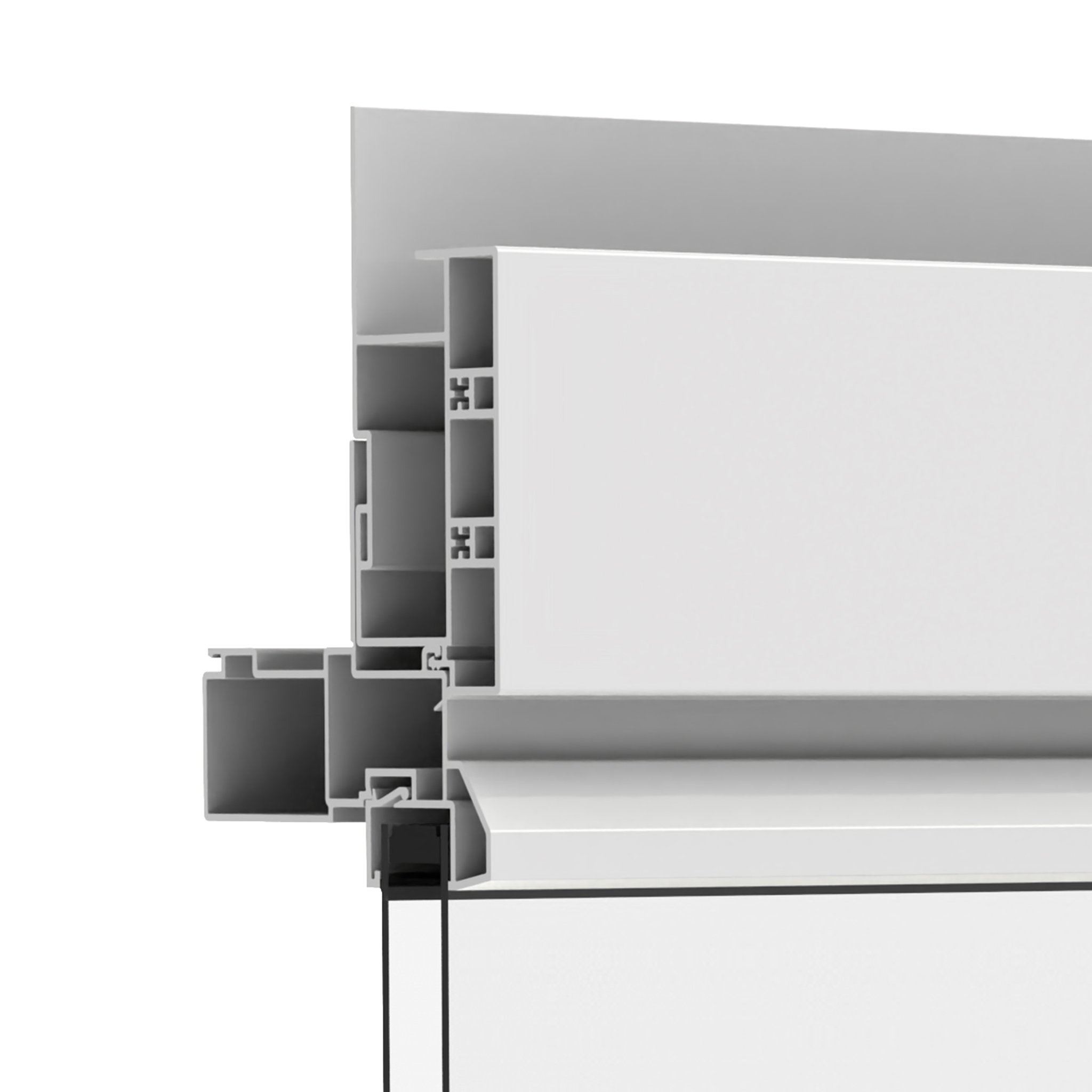

Flat Casing

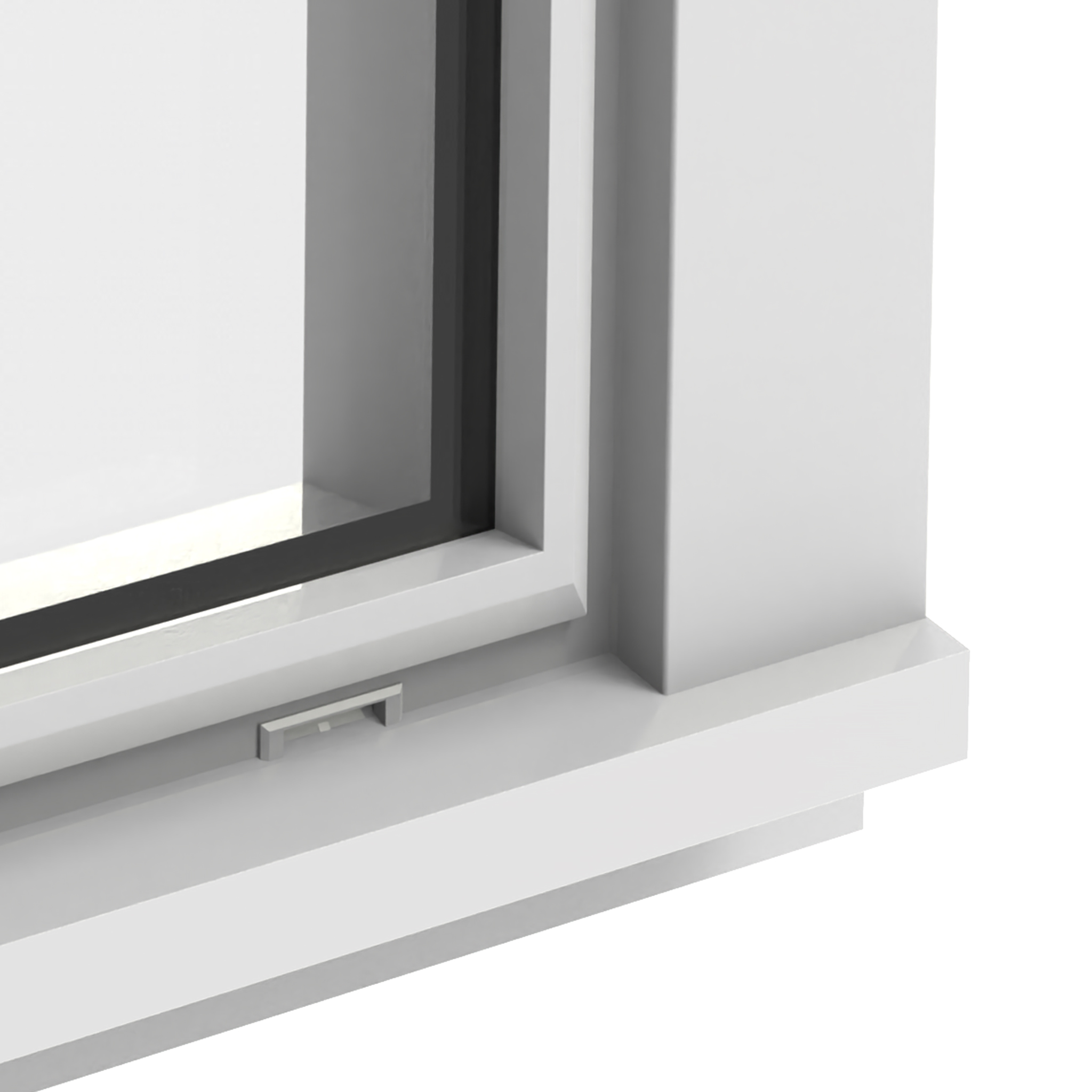

Flat Casing & Bullnose Sill

Glass Options:

Northeast Windows USA offers multiple variations of glass options dependent on your geographical location & desired appearance. All of our Glass Units are 7/8″ Overall Thick & Dual Glass Pane. We utilize a high performance Duralite Spacer System for energy efficiency. We offer both Energy Star 6.0 & Energy Star 7.0 Configurations across all of our products!

Clear

E366 Low-E

Tempered

Obscure

Laminated

Double Strength

Argon

Tinted

Double Low-E

ENERGY STAR 7.0

Beginning in October 2023, Energy Star Certification will be transitioning from Version 6.0 into Version 7.0. All of our products will have Energy Star 7.0 Certified configurations. In order to acchieve the required u-values, we will be utilizing a combination of both hardcoat and softcoat double low-e glass types along with foam filled extrusions.

Grid Profiles:

Northeast Windows USA offers various grid profiles across all of our products. All of our profiles can be utilized to create any of the combinations seen below. All of our grids are located inside of our insulated glass units. Along with an internal flat grid, Simulated Divided Lites (SDL) are added to the exterior of the glass. SDL’s are offered in both the interior & exterior on our windows.

Flat

Contour

Simulated Divided Light (SDL)*

Pencil Bars - (Colors: Gold & White)

2" SDL

Grid Patterns:

Are you looking for a stunning design detail to instantly set your home apart both inside and out? A choice of decorative grilles for your Northeast USA Windows & Doors can highlight the architectural style that speaks to you.

Colonial

Diamond

Prairie

Victorian

Pencil Bar A

Pencil Bar B

Pencil Bar C

SDL

Options:

Foam
Filled

Foam
Wrap

4 9/16" Extension Jamb

6 9/16" Extension Jamb

Drywall Returns

Metal Reinforcement

Internal Blinds

Blink blinds are the premier choice for internal systems. They are Child & Pet friendly, as well as completely
maintenance and clean free. They also come equipped with a 10 Year Warranty.

Our internal blinds will be offered in three different styles: Tilt & Turn, Raise & Lower, or Both. They will also be offered in both tempered and annealed glass.
