CW390 – CASEMENT WINDOW REPLACEMENT FULLY WELDED FLAT SASH
BOW – BOW WINDOW FULLY WELDED
- Fusion welded multi-chambered master frame
- Fusion Welded Sash with Beveled Profiles
- Snap In Glazing Beads Allow For Easy Glass Replacement If Necessary
- 7/8″ Insulated Glass Manufactured With Our Unique Warm Edge Seal
- Full Screens With Casements
- Double Sealed Weatherstripping
- 1” – 1 1/4” Birch Head and Seat Boards
- All exterior Weather Exposed Surfaces are Covered With Vinyl Stock
- maintenance free rigid multi chamber vinyl with additional chambers in profile
- Highest Quality Hardware of Concealed Hinges and Operators
- Casement Sash Opens To Center For Easy Cleaning
- Trim Profiles To Maximize Glass Area
- Multi-Point Roto Locking System
- All Custom Sized With Custom Projections
- Cable Support System
BAY – BAY WINDOW FULLY WELDED
CUSTOM SIZED
JAMB & PROJECTIONS
ALL OF OUR BAY WINDOWS ARE
NFRC RATED, ENERGY STAR COMPLIANT, & AAMA GOLD LABEL STANDARD
- Fusion welded multi-chambered master frame
- Fusion Welded Sash with Beveled Profiles
- Snap In Glazing Beads Allow For Easy Glass Replacement If Necessary
- 7/8’ Insulated Glass Manufactured With Our Unique Warm Edge Seal
- Full Screens With Casements – Half Screens With Double Hungs
- Double Sealed Weatherstripping
- 1” – 1 1/4” Birch Head and Seat Boards
- All exterior Weather Exposed Surfaces are Covered With Vinyl Stock
- Maintenance Free Rigid Multi Chamber Vinyl With Additional Chambers In Profile
- Highest Quality Hardware of Concealed Hinges and Operators
- Casement Sash Opens To Center For Easy Cleaning
- Trim Profiles To Maximize Glass Area
- Multi-Point Roto Locking System
- All Custom Sized With Custom Projections
- Cable Support System
AW390 – AWNING WINDOW WELDED W/ FLAT SASH
3 1/4″ JAMB SIZE
ALL OF OUR CASEMENT WINDOWS ARE
NFRC RATED, ENERGY STAR COMPLIANT, & AAMA GOLD LABEL STANDARD
- Fusion Welded Sash
- Fusion Welded Multi-Chambered Master Frame
- Snap In Glazing Beads Allow For Easy Glass Replacement If Necessary
- 7/8’ Insulated Glass Manufactured With Our Unique Warm Edge Seal
- Full Screens With Awnings
- Double Sealed Weatherstripping
- Shipped Fully Assembled- No Mulling of Units Needed
- Maintenance Free Rigid Multi Chamber Vinyl With Additional Chambers In Profile
- Highest Quality Hardware of Concealed hinges and Operators
- Dual Locking System
- All Custom Sized

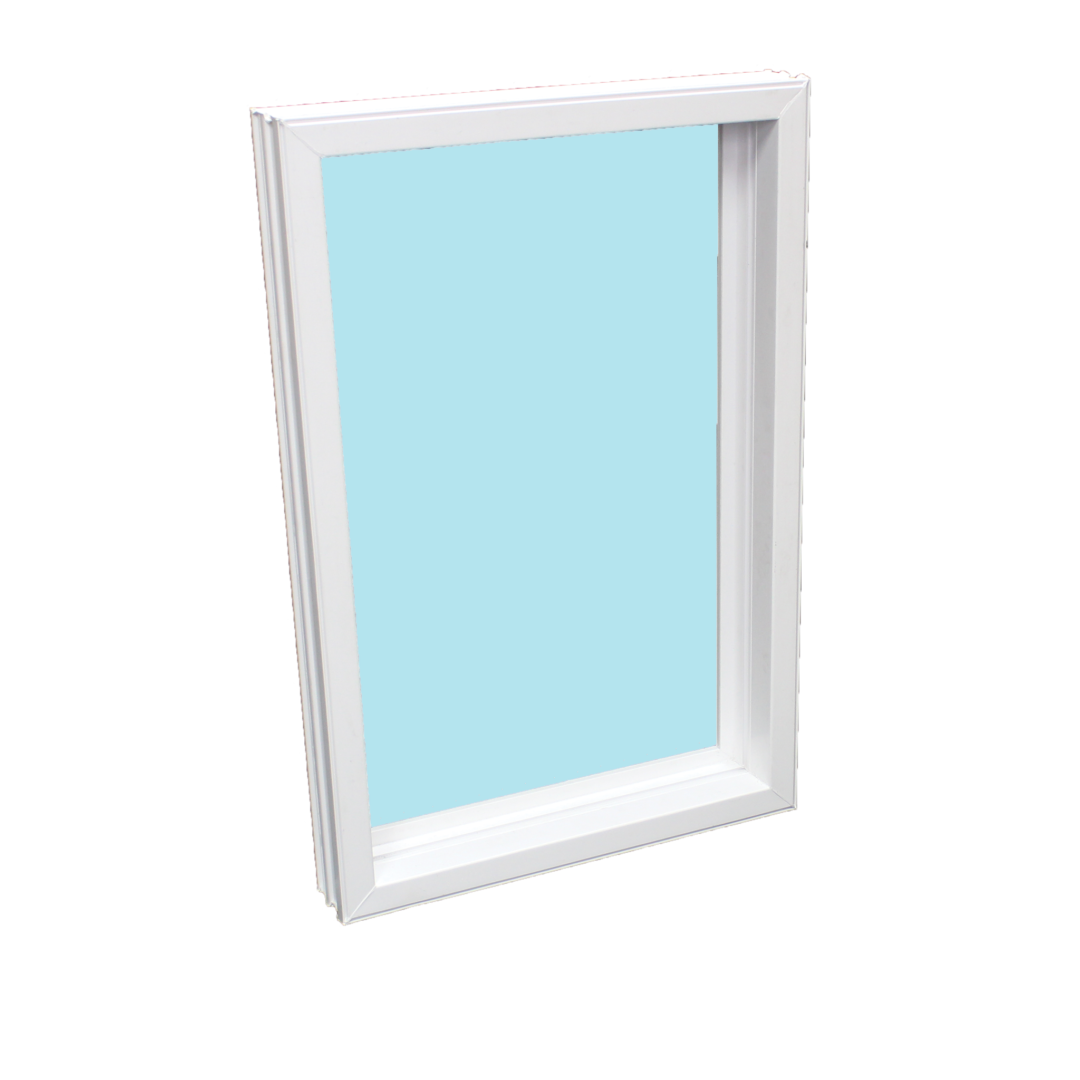

PW330 – PICTURE WINDOW FULLY WELDED
- Fusion Welded for an Air and Water Tight Seal
- Master Frame is 3 1/4”
- Optional Integral Nail Fin & J Channel
- Chambered Profiles Create Pockets Of Air That Increase Insulation and Prevent Condensation
- Accessory Grooves for Zero Degree Mulling
- Sealed Insulated Glass is 7/8” Overall Sealed With Our Unique Warm Edge Spacer
- Snap In Glazing Beads Allow For Easy Glass Replacement If Necessary
- Custom Sized
- All Picture Windows Over 101 U.I. Come With Double Strength Glass
SL750 – REPLACEMENT SLIDER WELDED FRAME & MECHANICAL SASH
SL750 IS ONLY AVAILABLE IN WHITE COLOR
THE SL750 IS THE PERFECT WINDOW FOR SMALL BASEMENT OPENINGS.
MECHANICAL SASHES GIVE US THE ABILITY TO MAKE SLIDERS WITH A MINIMUM OF 12″ HEIGHT.
The ULTIMATE Slider Vinyl Replacement Window
- Fully Fusion Welded Beveled Master Frame and Mechanical Sashes
- Two Operable Sash Panels
- All Sashes Slide Smoothly and Easily on Brass rollers
- Removable Sashes For Easy Cleaning And Maintenance
- Snap-In Glazing Beads Allow For Easy Glass Replacement If Necessary
- 7/8’ Insulated Glass Manufactured With Our Unique Warm Edge Seal
- Double Sealed Weatherstripping
- Dual Locks On Windows Over 24” High
- Positive Action Cam-Type Lock and Keeper
- Full Extruded Heavy Gauge Handles on Both Sashes
- Optional Full Screen, Half Screen, Locking Screen
- Optional Colors (White, Cream, Almond, Bronze, Laminated Exterior Black/Cream Interior)
- Optional Grid Patterns & Profiles
- Custom Sizing Available

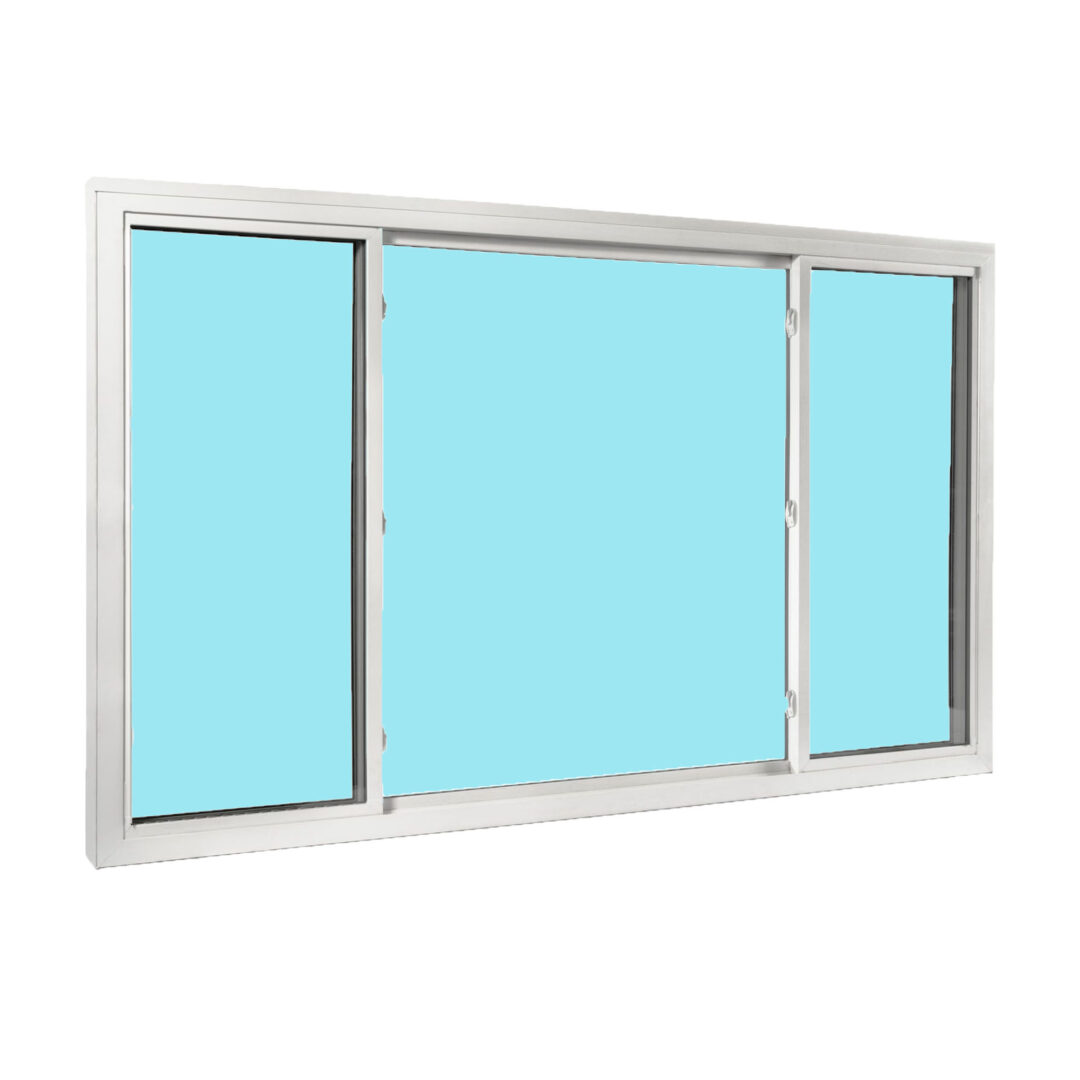

SL720 – REPLACEMENT SLIDER 3-LITE WELDED FRAME & SASH

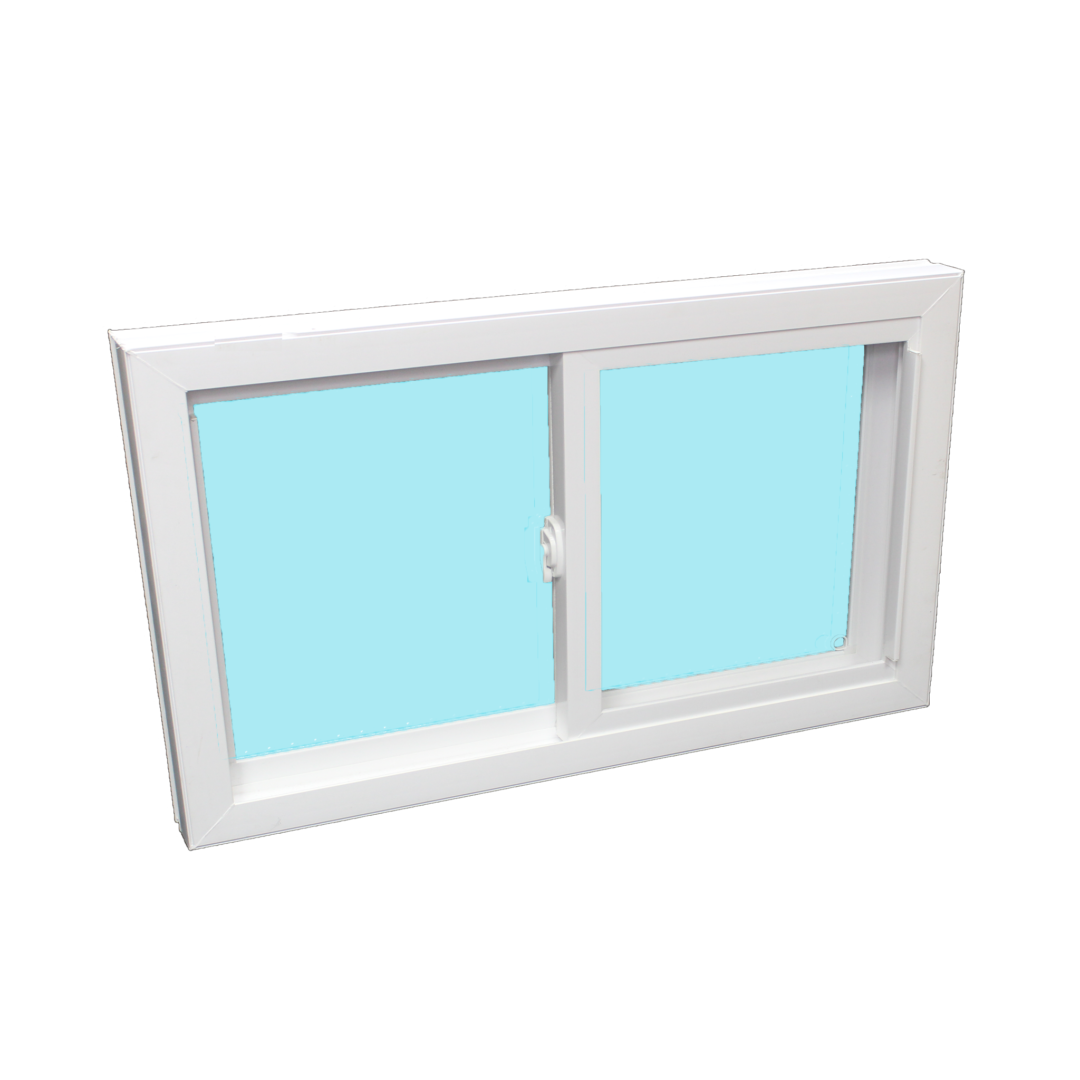

SL710 – REPLACEMENT SLIDER WELDED FRAME & SASH
The ULTIMATE Slider Vinyl Replacement Window
- Fully Fusion Welded Beveled Master Frame and Sashes
- Optional Integral Nail & J Channel
- Both Sashes Slide Smoothly and Easily on Brass rollers
- Removable Sashes For Easy Cleaning And Maintenance
- Snap-In Glazing Beads Allow For Easy Glass Replacement If Necessary
- 7/8’ Insulated Glass Manufactured With Our Unique Warm Edge Seal
- Double Sealed Weatherstripping
- Dual Locks On Windows Over 24” High
- Positive Action Cam-Type Lock and Keeper
- Full Extruded Heavy Gauge Handles on Both Sashes
- Optional Full Screen, Half Screen, Locking Screen
- Optional Colors (White, Cream, Almond, Bronze, Laminated Exterior Black/Cream Interior)
- Optional Grid Patterns & Profiles
- Custom Sizing Available
DH990 – NEW CONSTRUCTION DOUBLE HUNG WELDED FRAME & SASH
DH900 – REPLACEMENT DOUBLE HUNG WELDED FRAME & SASH
3 1/4″ JAMB SIZE
ALL OF OUR WELDED DOUBLE HUNGS ARE
NFRC RATED, ENERGY STAR COMPLIANT, & AAMA GOLD LABEL STANDARD
The ULTIMATE Double Hung Vinyl Replacement Window
- Fusion Welded Beveled Mainframe and Fusion Welded Sashes
- Constant Force Stainless Steel Adjustable Coil Balances
- Air and Water Tight Dual Durometer Glazing
- Snap-In Glazing Beads Allow For Easy Glass Replacement If Necessary
- 7/8” Insulated Glass Manufactured with Our Unique Gray “Swiggle” Warm Edge Seal
- Heavy Gauge Full Extruded Handles on Both Sashes
- Dual Locks On Windows Over 24” Wide
- Full Interlock with Double Weatherstripping
- Full Multichambered Weeping System
- Tilt-In Sashes for Easy Cleaning
- Two Heavy Duty Roll-Out Night Latches
- Maintenance Free Rigid Vinyl with Additional Chambers in Profile
- Positive Action Cam-Type Lock and Keeper
- Four Positive Heavy-Duty Jamb Adjusters
- Adjustable Sill Extension
- Sloped Sill
- Optional Balance Covers
- Optional Full Screen, Half Screen, Locking Screen
- Optional Colors (White, Cream, Almond, Bronze, Laminated Exterior Black/Cream Interior)
- Optional Grid Patterns & Profiles
The DH900 comes with an accessory grooves which allow for zero degree mulling, and the ability to accept nail fin. This DH900 can be used as a replacement or new construction by adding a nail fin.
